Channels & Beams — PFC, UB & UC steel for serious structural work

When the job needs real strength; spanning openings, supporting loads, or building robust frames, channels and beams are the backbone of the build. Steelmart stocks the key structural sections used across residential, commercial and rural projects, including Parallel Flange Channel (PFC), Universal Beams (UB / I-Beam) and Universal Columns (UC).

Need something pre-galvanised for additional corrosion protection? Duragal Channel (Duragal PFC) can be used in lighter structural applications and sometimes even our hot dipped galvanised retaining wall PFCs and H-posts might also be used in a structural duty.

Parallel Flange Channel (PFC) — strong, versatile and easy to work with

PFC (often called “channel”) is a structural C-shaped section used where you want a strong member that’s practical to weld, bolt and brace into frames. It’s widely used for:

  • structural framing and supports
  • lintels and edge members (where specified)
  • equipment frames and fabricated supports
  • trailer frames and general heavy fabrication
  • Modular housing chassis / bases

Duragal Channel (PFC) — galvanised protection for exposed jobs

Duragal Channel is a factory applied galvanised PFC option for projects exposed to weather and moisture. It’s a smart pick for external framing, rural fabrication, and builds where long-term corrosion resistance matters. The channel profile is cold rolled into shape which means that the internal profile is square and doesn’t have any tapered corners like a typical hot-rolled PFC would have. This can be advantageous if nesting other members flush inside the channel. Duragal PFC is thinner than regular PFC and therefore isn’t widely used in structural applications.

Why customers choose PFC:

  • strong structural section with a practical profile
  • easy fixing and connection surfaces
  • good option when you don’t need the depth/weight of a UB
  • Duragal option for outdoor durability or where a square internal profile is needed

Universal Beam (UB) and Universal Column (UC) — when loads and spans get bigger

When you’re carrying serious weight or spanning longer distances, Universal Beams and Columns are the standard structural sections builders reach for. They’re designed to deliver high strength and stiffness where it matters most, ideal for major openings, load-bearing frames, and structural support in residential, commercial and industrial builds.

  • UB (Universal Beam / I-Beam): designed for carrying loads across spans — used for major openings, supporting floors/roofs, and heavy structural beams.

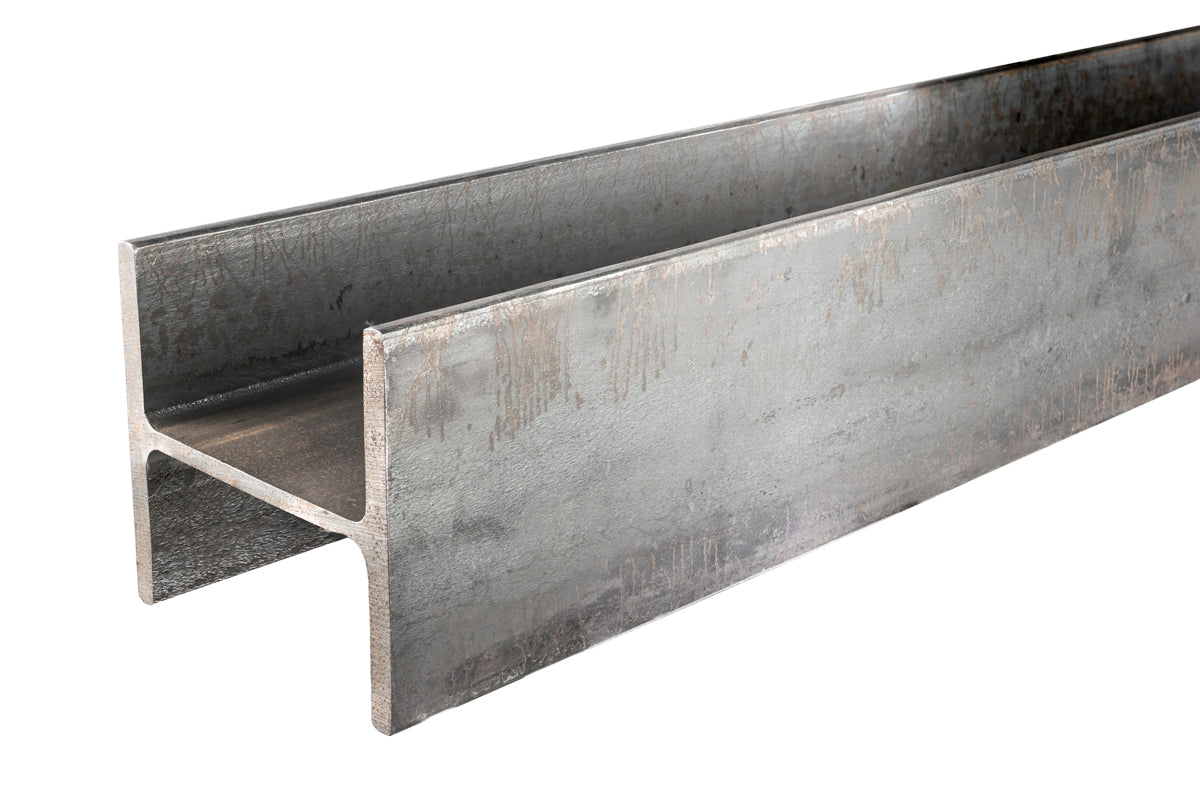

  • UC (Universal Column): a heavier, squarer profile commonly used for posts and columns, load-bearing supports, and structural frames.

If you’re unsure which section fits your job, tell us what you’re building (span, load and supports) and we’ll help point you to the right profile.

FAQ's

What’s the difference between PFC, UB and UC?

  • PFC (Parallel Flange Channel) is a C-shaped section used for framing, edge members, bracing and general fabrication where you want an easy profile to bolt and weld to.
  • UB (Universal Beam / I-Beam) is designed to span and carry loads across openings (think long, load-bearing beams).

UC (Universal Column) is heavier and more column-like, commonly used for posts and vertical load-bearing supports.

When should I use a PFC instead of a UB?

Choose a PFC when you need a strong structural member with practical fixing faces and you’re not spanning big distances like a major beam. PFC is popular for residential frames, supports, edge members, bracing and fabrication.

Choose a UB when the job is primarily spanning and carrying significant loads and as advised by your certifying engineer.

What’s the difference between a UB and a UC?

Both are structural “I-sections”, but:

  • UB is typically used as a beam (spanning).

UC is typically used as a column (vertical support) and is generally heavier through the web/flanges for that role.

How do I choose the right size beam or channel?

Start with:

  • what it needs to carry (load)
  • how far it spans (distance between supports)
  • how it’s supported and connected

For structural or load-bearing work, the safest approach is to follow the engineer’s design/specs. If it’s general fabrication, tell us what you’re building and we can help narrow down a suitable section size.

Do you stock matching steel for frames and bracing?

Yes, channels and beams are often paired with other common structural sections like SHS/RHS square/rectangular tube, angle, flat bar, and plate depending on the frame design and connection details.


Can Steelmart cut channels and beams to size?

Yes we can cut to length on request so you can reduce waste and get straight to install or fabrication. If you’ve got a cut list, send it through with quantities and lengths.
