LevelMaster Stump Base

Every stump needs a base. Choose the one that suits how you're fixing to the ground.

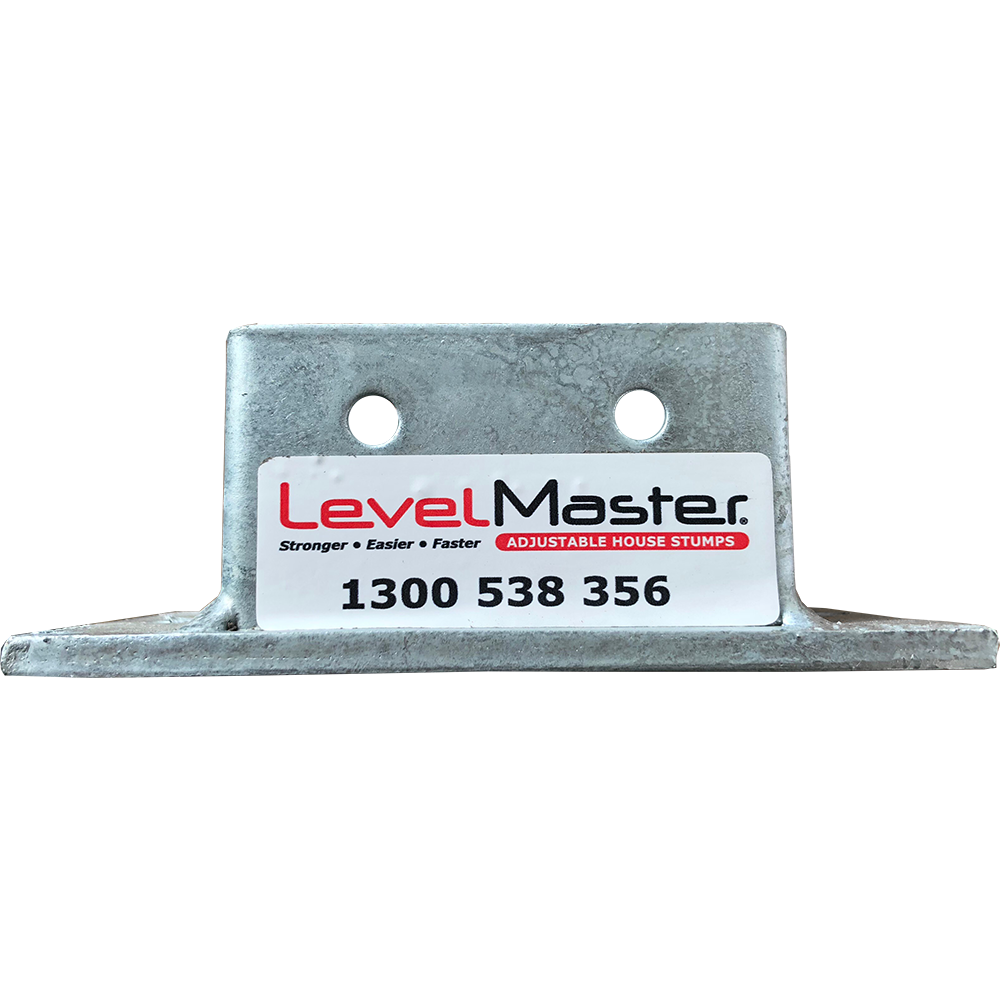

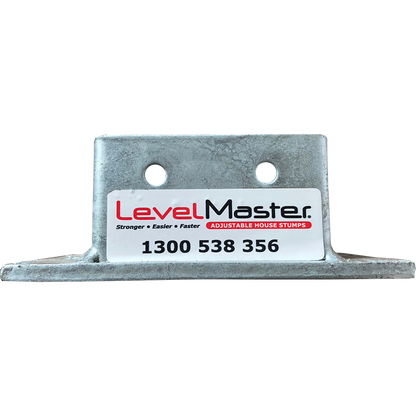

Cast-In — for new pours. The base plate sits in the concrete pier and gives you a stronger foundation through increased surface area. Suits 75 or 90mm SHS posts.

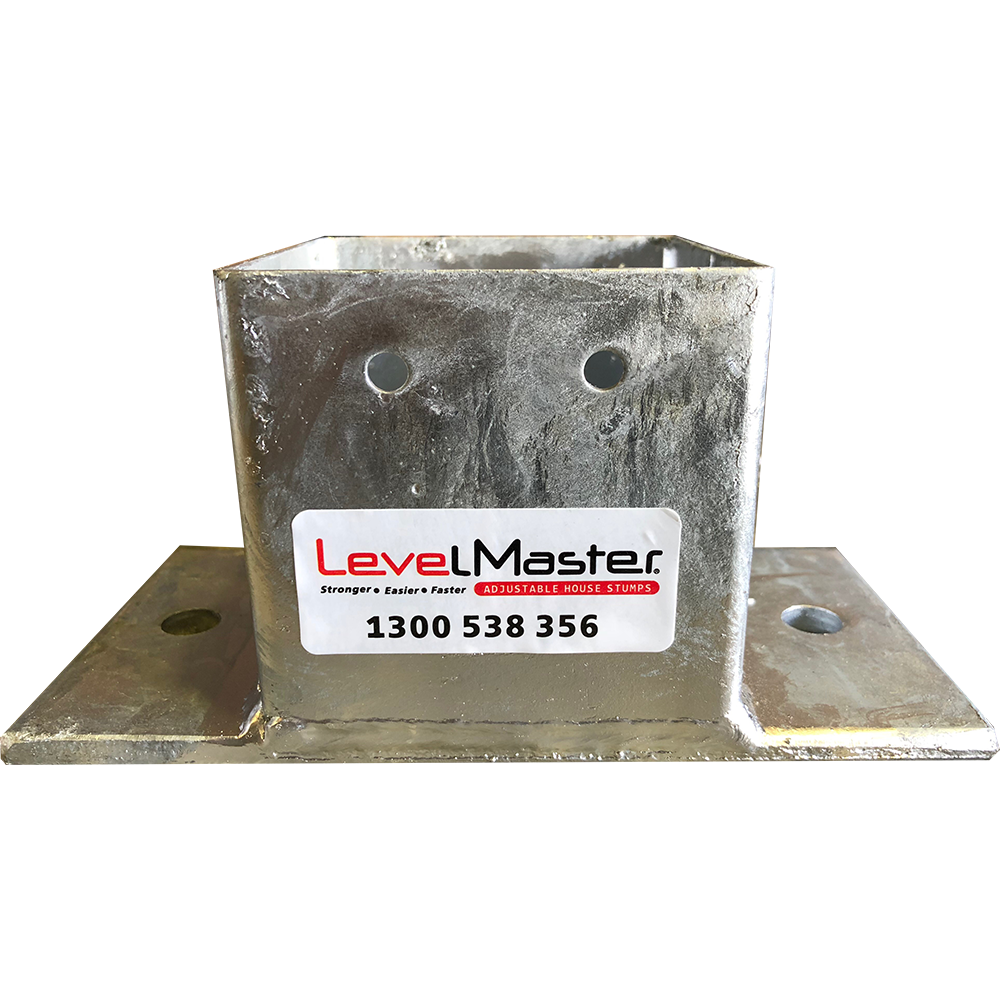

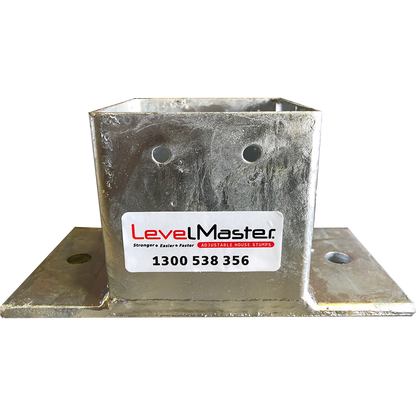

Bolt Down (2 Hole) — for fixing onto an existing concrete pad with chemical anchors. 14mm bolt clearance hole each side of the stump, 8mm baseplate.

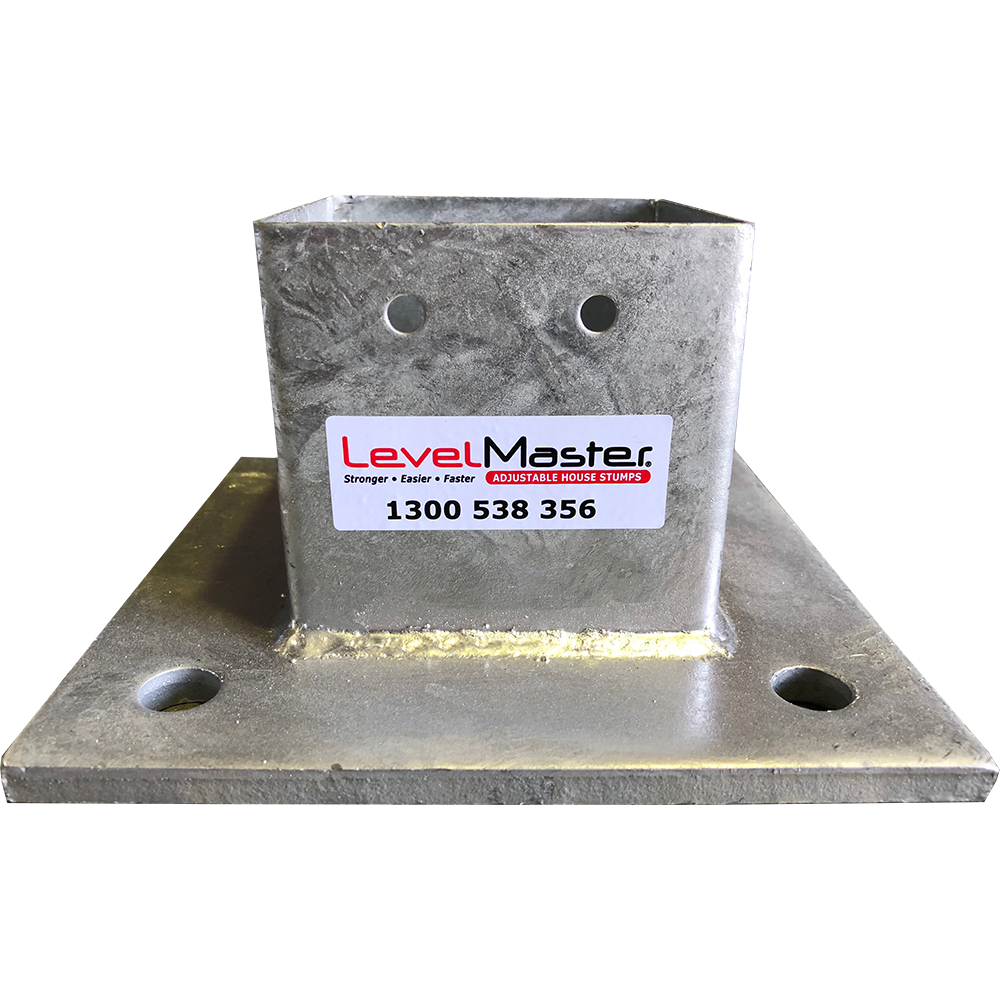

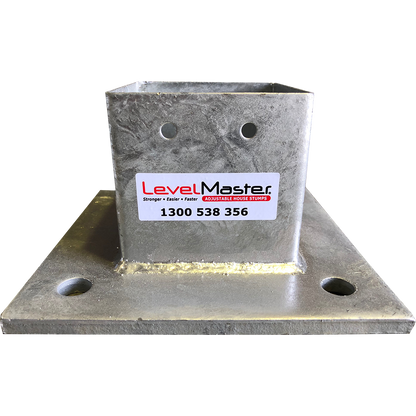

Bolt Down (4 Hole) — when the engineer wants more pull-out strength. Bolts at all four corners give you greater stability under load. 10mm baseplate.

Features:

• Three connection styles in one range — Cast-In, 2-Hole Bolt Down, or 4-Hole Bolt Down
• Hot dipped galvanised
• Suits 75/89/90/100mm SHS stump posts (varies by variant)
• 4 Tek screws to fix to the post
• 14mm bolt clearance holes on Bolt Down variants — works with chemical anchors
• Cast-In variant gives a wider footprint inside the pier for stronger anchorage

Common applications:

• New stump installations on greenfield slabs (Bolt Down)
• Pier-and-beam construction with cast-in piers (Cast-In)
• Restumping where existing concrete pads are reused (Bolt Down)
• High pull-out / cyclonic uplift situations (4-Hole Bolt Down)
• Deck and verandah footings

Need a hand picking the right part? Drop us a line here or give us a buzz on (07) 5371-0160. We're here to help.
