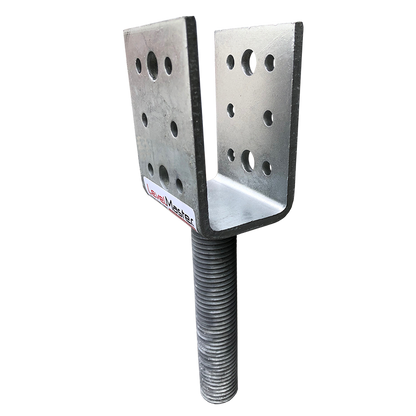

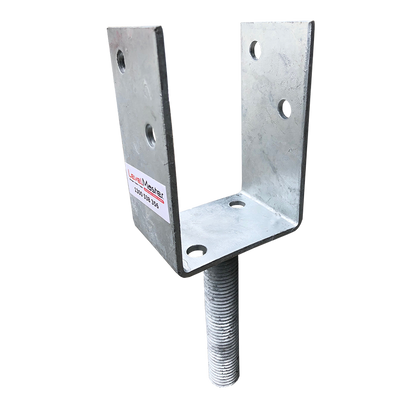

LevelMaster Stump Stirrup

The Stirrup is a U-shaped top that hugs both sides of the bearer, so you can bolt the whole way through without tightening down onto the bearer itself. That makes it the right pick for steel floor construction where you don't want clamping force on the joist or bearer.

50mm Stirrup — 106 × 52 × 80mm, suits 50mm bearers (typical timber joist).

100mm Stirrup — 155 × 101 × 75mm, suits 100mm bearers

Both versions are hot dipped galvanised, M30 threaded, and work with every LevelMaster connector.

Features:

• Hot dipped galvanised
• M30 × 200mm thread
• U-shape design — through-bolt without clamping the bearer
• 14mm bolt holes (8mm and 14mm on the 50mm version)
• Suits all LevelMaster connectors

Common applications:

• Steel floor construction with 50mm or 100mm joists
• New builds where the bearer needs to be bolted through rather than sat on
• Pier-and-beam subfloors with metal bearers

Need a hand picking the right part? Drop us a line here or give us a buzz on (07) 5371-0160. We're here to help.
